Height Requirements for a Chimney

The chimney must extend at least three feet above the highest point where it passes through the roof surface and at least two feet higher than any part of the building within a horizontal distance of ten feet.

height requirements.jpg

Typical Chimney Pipe Installations



Pellet Venting Configurations

Pellet installs.jpg


Gas Fireplace Venting Configurations

gas fireplace venting.gif

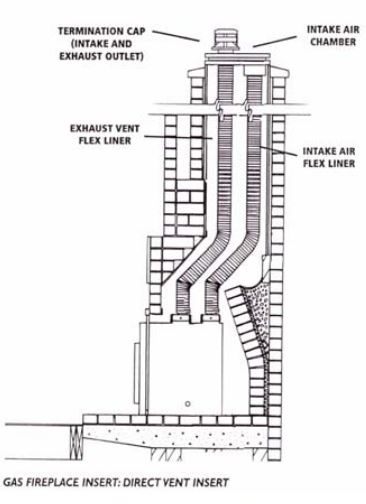

GAS AND WOOD INSERT VENTING CONFIGURATIONS

gas insert.jpg
wood insert.jpg
